BMW F97 F98 宝马X3M X4M改装散热加强型碳纤维油冷护板

2024.04.27
产品说明:

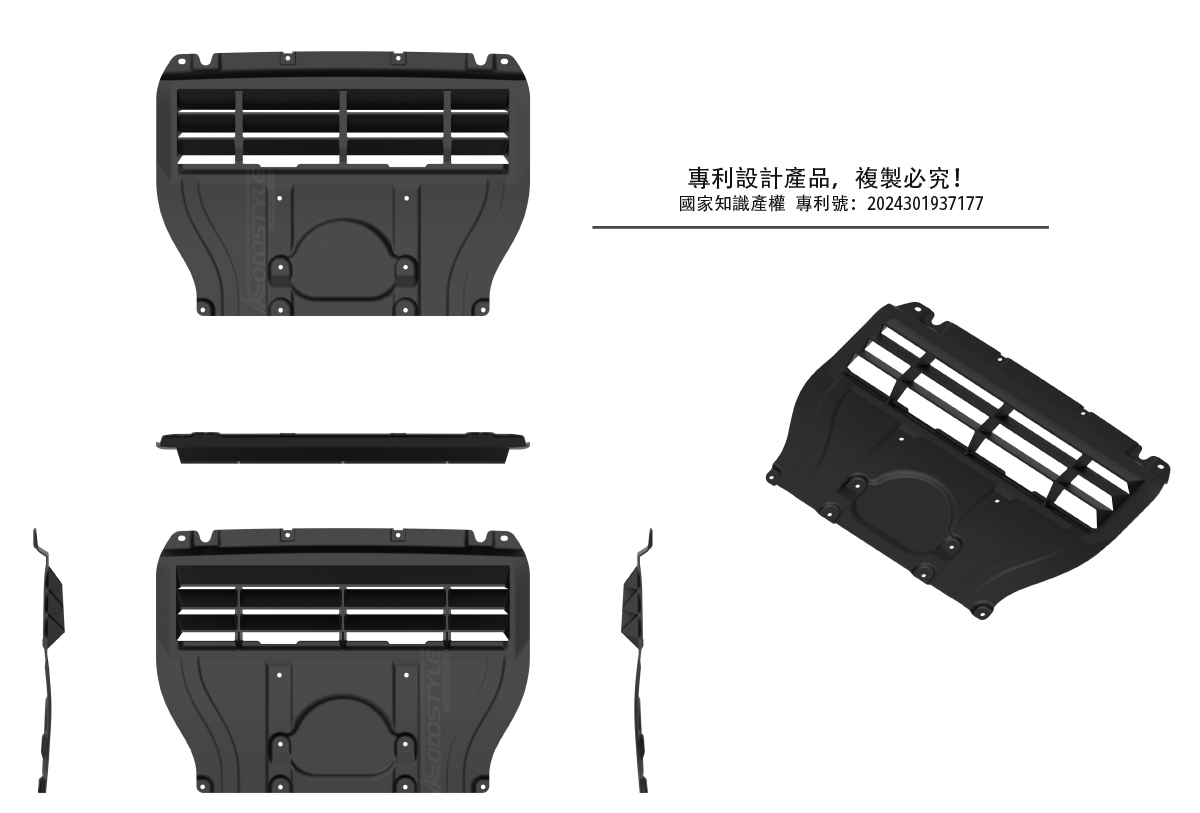

本品为专利型设计,已获得设计专利,专利号:2024301937177
Patented design products







以实现较原车更强大的散热能力和减少路面飞沙走石对油冷器侵害为目的开发的本产品,已获国家知识产权外观设计专利。

本品为专利型设计,已获得设计专利,专利号:2024301937177。



本品特点:

采用迎风百叶窗设计,实现原车冷却器散热出气口更大的负压,形成较原车更大的散热气流压力差,不但可减少飞沙走石对油冷器的侵害,更能强化散热;
顺流方向的百叶窗连接设计,符合空气动力学,不影响气流流动,利于负压形成,气流更顺畅;
在冷却器前后配有风坝密封胶条,形成负压腔,减少乱流对散热的影响;
干碳纤维高温成型,高强度且轻量化,本品重量仅为约1.2KG(含风坝胶条),不含风坝密封胶条重约1.1KG;
所有安装孔位,遵循原厂的设计,真正做到原装位无损安装;
使用原车附件安装,不需要额外的附件装配;
以功能为目的的碳纤维本色表面,不作任何涂装,防刮且耐用;
采用12K双向斜纹碳纤维制造,可承受更大的剪切力;

1.配件编号:F9701
2.产地:中国
3.材质:干式碳纤维
4.适用车型:F97 X3M /F98 X4M
5.附件:无
6.声明:原位无损替换



This product, developed with the aim of achieving stronger heat dissipation capacity than the original vehicle and reducing the damage of road debris to the oil cooler, has obtained a national intellectual property design patent.

This product is a patented design and has obtained a design patent with patent number 2024301937177.



Features of this product:

Adopting a windward louver design, it achieves a larger negative pressure at the cooling outlet of the original car cooler, forming a larger pressure difference in the cooling airflow compared to the original car. This not only reduces the damage of flying sand and stones to the oil cooler, but also strengthens heat dissipation;

The connection design of the louvers in the downstream direction conforms to aerodynamics, does not affect the flow of air, facilitates the formation of negative pressure, and makes the air flow smoother;

Equipped with air dam sealing strips before and after the cooler, forming a negative pressure chamber to reduce the impact of turbulence on heat dissipation;
Dry carbon fiber high-temperature molding, high-strength and lightweight, this product weighs only about 1.2KG (including wind dam sealing strip), and weighs about 1.1KG without wind dam sealing strip;
All installation holes follow the original factory design to truly achieve non-destructive installation in their original positions;
Install using original car accessories without the need for additional accessory assembly;
Carbon fiber natural color surface with a focus on functionality, without any coating, scratch resistant and durable;
Made of 12K bidirectional twill carbon fiber, it can withstand greater shear forces;



F97/F98 X3M X4M 油冷护板本体 oil cooler protection cover

---------------------------------------------------------------------------------------------------------------------------------------------








F97/F98 X3M X4M 油冷护板配备风坝腔(红色位置),减少乱流对散热干扰

F97/F98 X3M X4M oil cooled protective plate equipped with air dam chamber (red position) to reduce turbulence interference on heat dissipation

---------------------------------------------------------------------------------------------------------------------------------------------






顺流方向的百叶窗连接设计,符合空气动力学,不影响气流流动,利于负压形成,气流更顺畅

The connection design of the louvers in the downstream direction conforms to aerodynamics, does not affect the flow of air, facilitates the formation of negative pressure, and makes the air flow smoother;

---------------------------------------------------------------------------------------------------------------------------------------------






F97/F98 X3M X4M 油冷护板本体装配上原车附件(红色位置)

F97/F98 X3M X4M oil cooled protective plate body assembly with original vehicle accessories (red position)

---------------------------------------------------------------------------------------------------------------------------------------------








F97/F98 X3M X4M 油冷护板本体+原车附件
F97/F98 X3M X4M Oil Cooled Guard Body+Original Car Accessories

---------------------------------------------------------------------------------------------------------------------------------------------










F97/F98 X3M X4M 油冷护板重量约1.2KG
F97/F98 X3M X4M oil cooled protective plate weighs approximately 1.2KG

---------------------------------------------------------------------------------------------------------------------------------------------





F97/F98 X3M X4M 油冷护板改装案例
F97/F98 X3M X4M Oil Cooled Guard Product installation cases

---------------------------------------------------------------------------------------------------------------------------------------------






















F98 X4M 油冷护板改装案例
F98 X4M Oil Cooled Guard Product installation cases

---------------------------------------------------------------------------------------------------------------------------------------------
